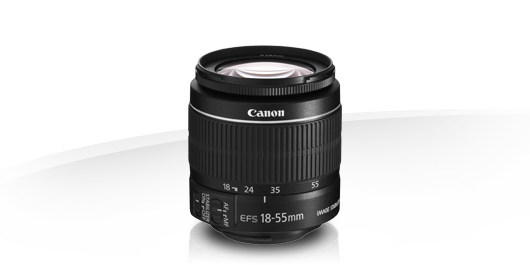

Canon EF-S 18-55mm f/3.5-5.6 IS II Specifications

Image size

APS-C

35mm film equivalent focal length

29-88

Angle of view (horzntl, vertl, diagnl)

64º 30' - 23º 20', 45º 30'- 15º 40', 74º 20' - 27º 50'

Lens construction (elements/groups)

11/9

No. of diaphragm blades

6

Minimum aperture

22 - 38(36)¹

Closest focusing distance (m)

0.25

Maximum magnification (x)

0.34 (at 55mm)

Distance information

Provided

Image stabilizer

4-stops

AF actuator

Micro Motor

DUST/MOISTURE RESISTANCE

Filter diameter (mm)

58

Max. diameter x length (mm)

68.5 x 70

Weight (g)

200

Magnification - Extension Tube EF12 II

0.64-0.23¹

Magnification - Extension Tube EF25 II

1.00-0.51¹

Lens Cap

E-58 / E-58II

Lens hood

EW-60C

HARD CASE

Soft case

LP814

G.F.HOLDER IV (HOOD IV*)

Extenders EF1.4x II and EF2x II

NC

Disclaimer

*Maximum number of Hood III/IV attachable. In case of zoom lenses, the maximum number applies to the short focal length

*Maximum number of Hood III/IV attachable. In case of zoom lenses, the maximum number applies to the short focal length

Footnote

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angles

¹ Not compatible at wide angles

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angles

¹ Not compatible at wide angles
