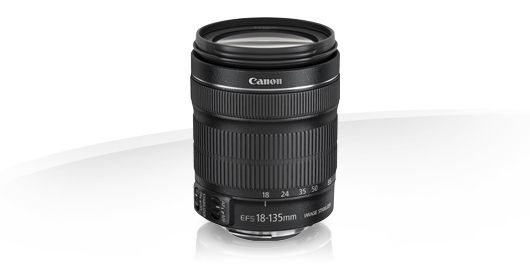

Canon EF-S 18-135mm f/3.5-5.6 IS STM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size

APS-C

35mm film equivalent focal length (mm)

29-216

Angle of view (horzntl, vertl, diagnl)

64° 30' - 9° 30', 45° 30' - 6° 20', 74° 20' -11° 30'

Lens construction (elements/groups)

16/12

No. of diaphragm blades

7

Minimum aperture

22 - 38(36)¹

Closest focussing distance (m)

0.39

Maximum magnification (x)

0.28

Distance Information

Provided

Image stabilizer

4-stops

AF actuator

STM

PHYSICAL SPECIFICATIONS

Filter diameter (mm)

67

Max. diameter x length (mm)

76.6mm x 96mm

Weight (g)

480g

ACCESSORIES

Lens Cap

E-67 / E-67II

Lens hood

EW-73B

Lens case/pouch

LP1116

G.F.Holder III (hood III*)

NC

G.F.Holder IV (hood IV*)

0

Magnification Extension Tube EF12 II

0.43-0.09

Magnification Extension Tube EF25 II

0.61-0.21

Extender Compatiblity

NC

Footnote

¹ Minimum aperture if using 1/3stop increment
