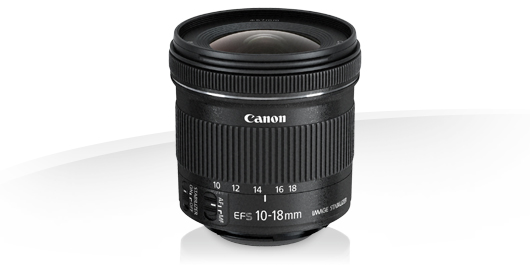

Canon EF-S 10-18mm f/4.5-5.6 IS STM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size

APS-C

35mm film equivalent focal length (mm)

16-29

Angle of view (horzntl, vertl, diagnl)

97°10′ - 64°30′


74°10′ - 45°30′


107°30′ - 74°20′

Lens construction (elements/groups)

14/11

No. of diaphragm blades

7

Minimum aperture

22-29

Closest focussing distance (m)

0.22

Maximum magnification (x)

0.15x (at18mm)

Distance Information

Provided

Image stabilizer

4.0

AF actuator

STM

PHYSICAL SPECIFICATIONS

Filter diameter (mm)

67

Max. diameter x length (mm)

74.6 x 72.0

Weight (g)

240

ACCESSORIES

Lens cap

E-67 II

Lens hood

EW-73C

Lens case/pouch

LP1116

Rear cap

Lens Dust Cap E

Magnification w/ Extension Tube EF12 II

Compatible (except at the widest setting)

Magnification w/ Extension Tube EF25 II

Not Compatible

Extender Compatiblity

Not Compatible

SPECIFICATIONS WITH EF 1.4X II

SPECIFICATIONS WITH EF 2X II
