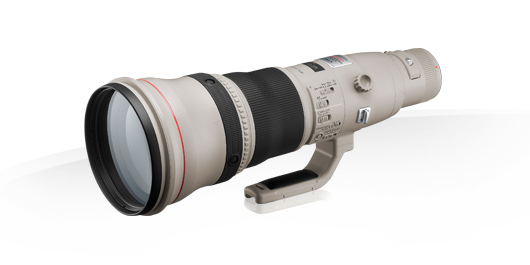

Canon EF 800mm f/5.6L IS USM Specifications

35MM FILM EQUIVALENT FOCAL LENGTH

Angle of view (horzntl, vertl, diagnl)

2° 35’, 1° 40’, 3° 5’

Lens construction (elements/groups)

18/14

No. of diaphragm blades

8

Minimum aperture

32

Closest focusing distance (m)

6m

Maximum magnification (x)

0.14

Distance information

Yes

Image stabilizer

4-stops

AF actuator

Ring USM¹

Filter diameter (mm)

52 Drop in

Max. diameter x length (mm)

163 x 461

Weight (g)

4500g

Magnification - Extension Tube EF12 II

0.16-0.02

Magnification - Extension Tube EF25 II

0.19-0.04

Lens Cap

E-180C / E-180D

Lens hood

ET-155

HARD CASE

Soft case

Lens case 800

G.F.HOLDER IV (HOOD IV*)

Extenders EF1.4x II and EF2x II

Compatible

Footnote

¹ Mechanical full-time manual focusing built-in
