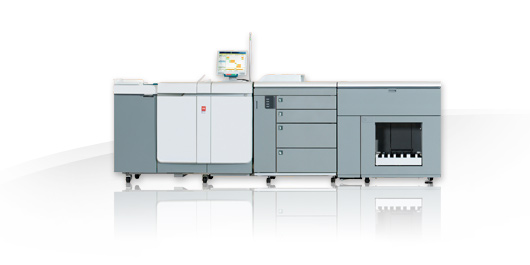

iHCS Specifications

INPUT

Paper sizes

Maximum 208 mm x 208 mm (with VarioPrint 6140 / 6160 / 6200 / 6250: 203 x 203 mm)


Maximum 305 mm x 547 mm (with VarioPrint 6140 / 6160 / 6200 / 6250: 320 x 488 mm)


All (custom) sizes processed by printer, including tabs

Paper weight

60 - 200 g/m²


50 - 300 g/m² on recommended media

TROUGHPUT

Productivity

Matches printer speed and all supported media sizes


Fully integrated: stacker is part of the printing system and is operated by the printer operator panel or the print driver on a PC


Full error recovery: stack is always complete with no missing or double sheets

Operating settings

Face up, face down


Head up, head down


First sheet first, last sheet first


Programmable stack height

OUTPUT

Capacity

6,000 sheets (80 g/m²) in two stacks of 3,000 each


Maximum of 3 stackers for the VarioPrint 6160 / 6200 / 6250

Characteristics

Unlimited capacity with unloading while printing: completed stack can be removed whilst stacking of prints continues


Stacking of mixed sizes is possible


Eject modes:


Manual eject: initiated by operator


Automatic eject: initiated by system when stacker is full, or at end of job


Straight or offset stacking


Bypass facility for an additional finishing device

PHYSICAL CHARACTERISTICS

Dimensions

Width: 1,153 mm


Depth: 716 mm


Height: 1,150 mm

Weight

160 kg

Power supply

110 - 240 V / 50 - 60 Hz

OPTIONS

PowerLift

For lifting and moving paper stacks


Width: 530 mm


Depth: 850 mm


Height: 1,520 mm


Weight: 36 kg


Maximum lifting weight: 80 kg


Minimum fork height: 100 mm


Maximum fork height: 1,200 mm

Set Finisher

For stapling and extra stacking capacity


4,000 sheets (80 g/m²)


Stapling and / or stacking of all sizes between:


long edge: 275 mm - 306 mm


short edge: 208 mm - 220 mm


Number of staples: 1 or 2 Stapling positions: portrait, landscape, block


Stapling capacity: 100 sheets (80 g/m²)
