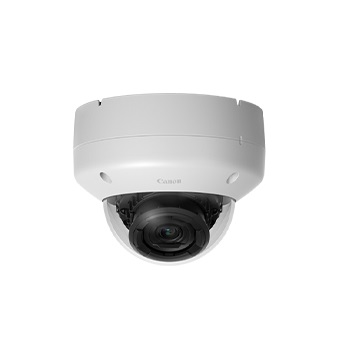

Canon VB-H652LVE


Full HD dome camera with an ultra-wide 122.1° field of view, bright f/1.2-1.8 lens, IK10 and IP66 vandal- and weather-resistance, plus built-in infrared LEDs for detailed mono image capture up to 20m away.



  • See more of the scene with the VB-H652LVE's ultra wide-angle lens
  • Vandal-resistant, weather-resistant, and NEMA250 Type 4X compliance for extensive protection against the elements
  • Built-in infrared LEDs for around-the-clock monitoring
  • Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) maintain video quality while reducing bandwidth usage
  • On-board analytics functions for advanced alarm detection
  • Live monitoring and configuration on supported web browsers and mobile devices
  • Supports ONVIF® Profile S and Profile G

Detailed Features

Take a look at a more detailed look into the Canon VB-H652LVE

Sharp, wide-angle images in Full HD

Get a more complete view with the VB-H652LVE's 122.1° wide-angle field of view and sensitive 1/3" CMOS sensor, producing Full HD-resolution images using the camera's bright f/1.2-1.8 lens. The aspherical lens elements and Super UD-distortion suppression help prevent chromatic aberration and achieve even crisper images under any lighting conditions. To improve bandwidth requirements and optimise image quality, Motion Adaptive Noise Reduction dynamically controls noise reduction levels when detecting moving objects or low-light noise.

Infrared LEDs for high-quality images even in darkness

Surveillance can continue around the clock, from bright daylight to virtual darkness. In low-light, the VB-H652LVE's f/1.2-1.8 2.4x optical zoom lens captures outstanding levels of detail, and in extreme low-light conditions the built-in infrared LEDs provide a clear, focused view of subjects up to 20m away.

Built to beat the elements

The VB-H652LVE is built to last. Both vandal- and weather-resistant, it is ingress rated to IP66 and certified for IK10 impact resistance. Its design and construction also comply with NEMA250 Type 4X and IEC 60950-1/22 standards to provide reliable operation in extreme temperatures, from -40°C (using the optional heater) up to 55°C.

Content-aware alarm detection

With on-board Video Content Analytics profiles, operators can conduct surveillance tasks efficiently and effectively. Intelligent analytics provide multiple virtual alarm detection functions, actively alerting operators to suspicious behaviour while helping to minimise storage and bandwidth re

Product Specification

Find out more about the Canon VB-H652LVE, its features and what it can do.

Digic DV III

Manages image quality & control


Efficient Network processing

Optical 2.4x Zoom

High quality optical magnification

Horizontal view angle 122.1 degree

Wide angle of view

Full HD

Full HD Resolution

All weather Model

Extended weatherproofing

Infrared Illumination

inbuilt light source

Auto SSC

Auto Smart Shade Control

Intelligent Function

Video Content Analysis

Simple Camera Setting

One click set-up

Digital PTZ

Virtual PTZ functionality


Certified vandal proof protection




Multiple power options

PoE plus

Power over Ethernet


Edge recording

  • VB-H652LVE Main Unit
  • Setup CD-ROM
  • Ceiling Plate
  • Safety Wire
  • Safety Wire Fixing Screw
  • Wrench
  • Template
  • Power Connector
  • Audio Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
