1.0 type back-illuminated CMOS
Approx. 20.1M (Aspect ratio 3:2) ¹
Approx. 20.9M
Primary Colour
DIGIC 7
8.8 – 36.8 mm (35 mm equivalent: 24 – 100 mm)
Optical 4.2x
ZoomPlus 8.4x
Digital Approx. 4x (with Digital Tele-Converter approx. 1.6x or 2.0x ¹)
Combined approx. 17x
f/1.8-f/2.8
11 elements in 9 groups (1 double sided aspherical lens, 1 single sided aspherical UA lens, 1 single sided aspherical lens and 1 UD lens)
Yes (lens shift-type), approx. 4-stop ¹.
Intelligent IS with 5-axis Advanced Dynamic IS & Auto Level
TTL
AiAF (31-point, Face Detection or Touch AF with Object and Face Select and Track), 1-point AF (any position is available or fixed centre)
Single, Continuous, Servo AF/AE ¹, Touch AF
Size (Normal, Small)
Yes, via customisable buttons
Yes
Yes, plus MF Peaking
Yes
5 cm (Wide) from front of lens
40 cm (Tele) from front of lens
Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot
Yes
+/- 3 EV in 1/3 stop increments
Auto Lighting Optimizer
ND Filter (3-stop) On / Auto / Off ¹
1/3 – 2 EV in 1/3 stop increments
125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800 ¹
AUTO ISO: 125 - 12800 (possible to set Max. ISO speed and rate of change)
1 – 1/2000 s (factory default)
1/8 - 1/2000 s (Movie Mode)
BULB, 15 – 1/2000 s (total range – varies by shooting mode) ¹
TTL
Auto (including Face Detection WB), Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Underwater, Kelvin Settings, Custom 1, Custom 2
White Balance Compensation
White Balance Compensation in Underwater mode Colour adjustment in Star mode
sRGB

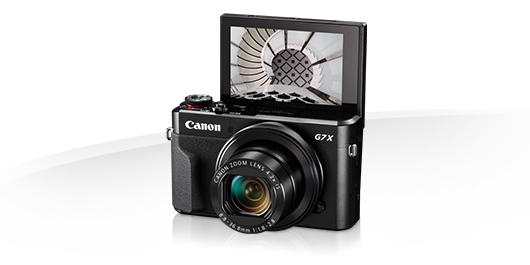

Tilt type 7.5 cm (3.0”) Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. Capacitive type, sRGB colour reproduction
Approx. 100%
Adjustable to one of five levels.
Night Display Mode available
Auto, Manual Flash On / Off, Slow Synchro
Yes. Fastest speed 1/2000 s
Yes
+/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE
Yes
3 levels with internal flash
Yes
50 cm – 7.0 m (W) / 40 cm – 4.0 m (T)
Canon High Power Flash HF-DC2
Smart Auto (58 scenes detected), Program AE, Shutter priority AE, Aperture priority AE, Manual, Custom, Hybrid Auto, SCN (Portrait, Self-Portrait, Panning, Star (Star Portrait, Star Nightscape, Star Trails, Star Portrait, Star Time-Lapse Movie), Handheld Night Scene, High Dynamic Range, Oil Painting Effect, Water-Painting Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Grainy B/W, Underwater, Fireworks), Standard Movie, Short Clip, Manual Movie, Time-Lapse Movie, iFrame Movie
Picture Styles (Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined x3 (Sharpness (Strength, Fineness, Threshold), Contrast, Color Saturation, Color Tone, Filtering Effect, Toning))
Single, Auto Drive, Continuous, Continuous with AF, Self-Timer
Approx. 8.0 shots/s for up to 19 frames in RAW and 30 frames in JPEG
with AF: Approx. 5.4 shots/s for up to 46 frames in JPEG
¹²
3:2 - (RAW, L) 5472 x 3648, (M) 3648 x 2432, (S1) 2736 x 1824, (S2) 2400 x 1600
4:3 - (RAW, L) 4864 x 3648, (M) 3248 x 2432, (S1) 2432 x 1824, (S2) 2112 x 1600
16:9 - (RAW, L) 5472 x 3072, (M) 3648 x 2048, (S1) 2736 x 1536, (S2) 2400 x 1344
1:1 - (RAW, L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600
In-camera RAW processing & Resize available
RAW, Fine, Normal
(Full HD) 1920 x 1080, 59.94 / 50 / 29.97 / 25 / 23.98 fps
(HD) 1280 x 720, 29.97 / 25 fps
(L) 640 x 480, 29.97 / 25 fps
(Full HD & HD) Up to 4 GB or 29 min 59 s ¹
(L) Up to 4 GB or 1 hour ²
JPEG compression (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system and DPOF ver. 1.1 compliant), RAW (14bit, Canon original RAW 2nd edition), RAW+JPEG
MP4 [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)]
iFrame
Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
Yes (via USB or Wireless LAN)
GPS via Mobile (linked to a compatible smartphone)
Yes, during shooting and playback
My Menu customisation available
Yes
Yes
Yes
Approx. 2, 10 s or Custom
English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew
Hi-Speed USB dedicated connector (Micro-B compatible)
HDMI Micro (Type-D) Connector
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support ¹
SD, SDHC, SDXC (UHS Speed Class 1 compatible)
Windows 10 / 8.1 / 8 / 7 SP1 ¹
Mac OS X 10.9 / 10.10 / 10.11
For Wi-Fi connection to a PC:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10
For Image Transfer Utility:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10 / 10.11
CameraWindow DC
Map Utility
Image Transfer Utility
Camera Connect app available on iOS and Android devices
Digital Photo Professional for RAW development
Rechargeable Li-ion Battery NB-13L (battery and charger supplied)
Approx. 240 shots
Charging via USB available with Compact Power Adapter CA-DC30E ¹ or other typical USB charging methods
Soft Case DCC-1880
PowerShot Accessory Organizer
Waterproof Case (40m) WP-DC55
Canon High Power Flash HF-DC2
Compact Power Adapter CA-DC30E
Battery Charger CB-2LHE
Rechargeable Li-ion Battery NB-13L
Interface cable IFC-600PCU
0 – 40 °C, 10 – 90% humidity
105.5 x 60.9 x 42.0 mm
Approx. 319 g (including battery and memory card)
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated. Subject to change without notice.
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated. Subject to change without notice.
¹ Image processing may cause a decrease in the number of pixels.
¹ Depending on the image size selected.
¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.
¹ Some settings limit availability.
¹ Auto ND Filter not available in Movie Mode.
¹ ISO sensitivity denotes Recommended Exposure Index
¹ Maximum shutter speed is limited at 256 s in BULB Mode
¹ Under conditions where the flash does not fire.
² Sustained continuous shooting speed is tested based on Canon's testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
¹ Software applications compatible with Windows 10 in Windows 10 Desktop Mode only
¹ Charging via USB requires Interface Cable IFC-600PCU (Sold separately) or similar cable with USB Micro-B to USB type-A connectors. Charging time varies depending on the remaining battery power.
¹ Image processing may cause a decrease in the number of pixels.
¹ Depending on the image size selected.
¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.
¹ Some settings limit availability.
¹ Auto ND Filter not available in Movie Mode.
¹ ISO sensitivity denotes Recommended Exposure Index
¹ Maximum shutter speed is limited at 256 s in BULB Mode
¹ Under conditions where the flash does not fire.
² Sustained continuous shooting speed is tested based on Canon's testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
¹ Software applications compatible with Windows 10 in Windows 10 Desktop Mode only
¹ Charging via USB requires Interface Cable IFC-600PCU (Sold separately) or similar cable with USB Micro-B to USB type-A connectors. Charging time varies depending on the remaining battery power.
