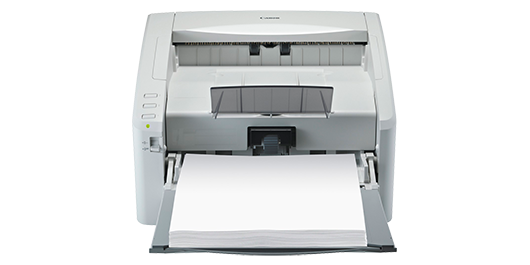

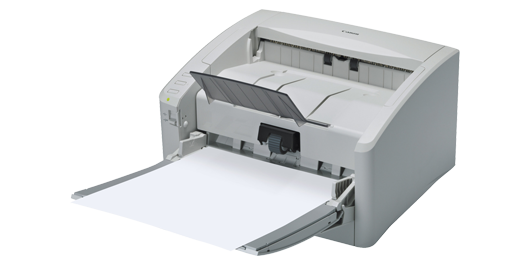

Desktop Type Sheet Fed Scanner
CMOS CIS 3 Line Sensor
600dpi
RGB LED
Front / Back / Duplex
Dual Interface (High speed USB 2.0 & SCSI-3)
Tray Closed: 318 (W) × 278 (D) × 185.5 (H) mm
Tray Opened: 318 (W) × 545 (D) ×187 (H) mm at U-Turn path
Approx. 6.5 kg
AC220 - 240V (50/60Hz)
Scanning: 30W, Sleep mode:2.2W
10 - 32.5°C (50 - 90.5°F), Humidity: 20 - 80% RH
RoHS
60ppm / 120ipm
60ppm / 120ipm
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour, High speed Text Enhancement
Approx: 7,500 scans/day
53-219mm
70-356mm
Automatic Feeding/U-Turn: 52 - 128g/m² (0.06- 0.15mm)
Automatic Feeding/Straight Path: 52 - 128g/m² (0.06- 0.20mm)
Bypass Mode/U-Turn: 52 - 157g/m² (0.06- 0.20mm)
Bypass Mode/Straight Path: 52 - 546g/m² (0.06- 0.66mm)
3000mm max. (Adjustable in MS Windows control panel)
Width: 53.0mm, Length: 85.5mm, Thickness: 0.76mm (Straight Path & Bypass Mode only)
Retard Roller
100 Sheets (80g/m²)
Auto Page Size Detection, Deskew, Skip Blank Page, Text Oriantation Recognition, Auto Colour Detection, Colour Dropout (RGB/Custom), Enhancement (RGB/Custom), Moire Reduction, Prevent Bleed through/Remove Background, Border Removal, Batch Separation, Patch Code Separation (software), Punch Hole Removal, Scan Area Setting, MultiStream™, Rapid Recovery System, Ultrasonic Double Feed Detection, Job/User Registration
ISIS /TWAIN Driver (Windows 2000 / XP / VISTA / 7 / 8 / 10)
CapturePerfect
Kofax VRS
Exchange Roller Kit
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
